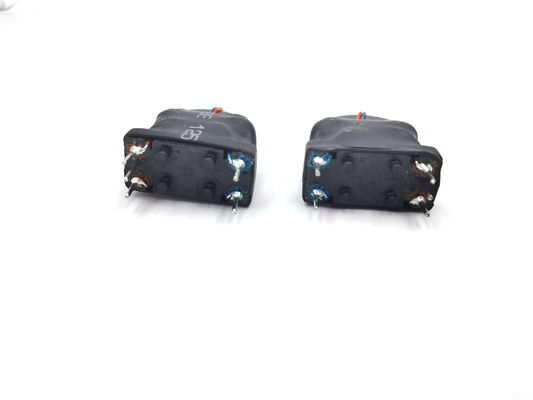

Oscillation Choke Coil Inductor Kinescope Deflection Blocking Filter

Oscillation Choke Coil Inductor Kinescope Deflection Blocking Filter
Oscillation Choke Coil Inductor Kinescope Deflection Blocking Filter

Large Image :  Oscillation Choke Coil Inductor Kinescope Deflection Blocking Filter

Product Details:
Place of Origin: China
Brand Name: HEMEI
Model Number: HM18-4L
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD0.1~0.5/PCS
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH

Oscillation Choke Coil Inductor Kinescope Deflection Blocking Filter

Description
Materail: Mn、Zn Inductance: 6uh--15uh
DC Resistance: 20mΩ MAX Turn Ratio: 3
Voltage: 4000VAC Packing: Carton
High Light:

Oscillation Choke Coil Inductor

,

Kinescope Choke Coil Inductor

,

Blocking power factor correction inductor

Oscillation inductors, correction inductors, kinescope deflection inductors, blocking inductors, filter inductors, isolation inductors, compensated inductors

Inductance is a property of a closed loop, that is, when the current passing through the closed loop changes, an electromotive force will appear to resist the change of the current. This kind of inductance is called self-inductance and is the property of the closed loop itself.

Applications

  • Compact fluorescent lamp
  • Television receiver
  • Radio cassette player
  • PC power supply
  • Monitor,audio,VCD,DCD
  • UPS
  • The electronic apparatus
  • The noise rejection
  • Induction cooker,etc.



Feature
  • High current capacity
  • Low core loss at frequency
  • High reliability, efficiency
  • Small packaged size
  • Operating Temperature: -30°C to +80°C
  • Electrical Specifications at 20°C
NO Item Test pin Test value Condition
1 Inductance
N1N2N3N4
680uH±30%
1KHZ 0.3V
2 DC resistance
N1N2N3N4
50 mΩ MAX
TH2511
3



Diagram

Oscillation Choke Coil Inductor Kinescope Deflection Blocking Filter 0
