Kinescope Deflection Common Mode Choke Inductance Filter

Certification
China Hefei Hemei Electronics Technology Co., Ltd certification
I'm Online Chat Now

Kinescope Deflection Common Mode Choke Inductance Filter

Kinescope Deflection Common Mode Choke Inductance Filter
Kinescope Deflection Common Mode Choke Inductance Filter

Large Image :  Kinescope Deflection Common Mode Choke Inductance Filter

Product Details:
Place of Origin: China
Brand Name: HEMEI
Model Number: HM18-4L
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD0.1~0.5/PCS
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH

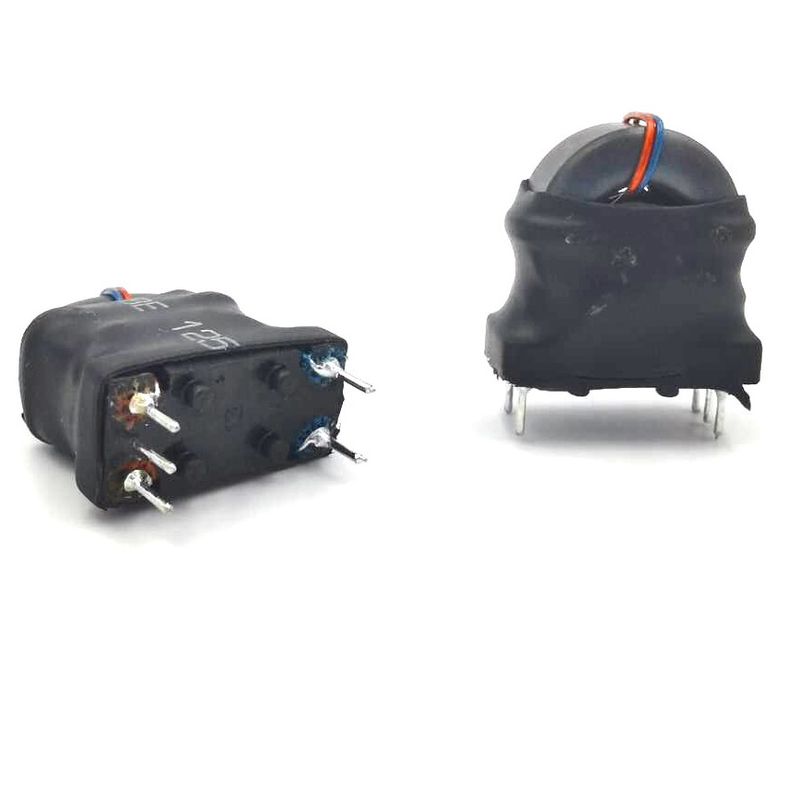

Kinescope Deflection Common Mode Choke Inductance Filter

Description
Materail: Mn、Zn Inductance: 6uh--15uh
DC Resistance: 20mΩ MAX Turn Ratio: 3
Voltage: 4000VAC Packing: Carton
High Light:

Kinescope common mode choke inductance

,

Deflection common mode choke inductance

,

Blocking Filter Inductors

kinescope deflection inductors, blocking inductors, filter inductors, isolation inductors, compensated inductors

When current flows through the coil, a magnetic field is generated around the coil. When the current in the coil changes, the surrounding magnetic field also changes accordingly. This changing magnetic field can cause the coil itself to generate induced electromotive force (induced electromotive force) (electromotive force is used to represent the terminal voltage of the ideal power supply for active components). It's self-induction.

When two inductance coils are close to each other, the magnetic field change of one inductance coil will affect the other inductance coil, and this effect is mutual inductance. The magnitude of the mutual inductance depends on the degree of coupling between the self-inductance of the inductance coil and the two inductance coils. The components made by this principle are called mutual inductors.

Applications

  • Compact fluorescent lamp
  • Television receiver
  • Radio cassette player
  • PC power supply
  • Monitor,audio,VCD,DCD
  • UPS
  • The electronic apparatus
  • The noise rejection
  • Induction cooker,etc.



Feature
  • High current capacity
  • Low core loss at frequency
  • High reliability, efficiency
  • Small packaged size
  • Operating Temperature: -30°C to +80°C
  • Electrical Specifications at 20°C
NO Item Test pin Test value Condition
1 Inductance
N1N2N3N4
680uH±30%
1KHZ 0.3V
2 DC resistance
N1N2N3N4
50 mΩ MAX
TH2511
3



Diagram

Kinescope Deflection Common Mode Choke Inductance Filter 0

Kinescope Deflection Common Mode Choke Inductance Filter 1



Contact Details
Hefei Hemei Electronics Technology Co., Ltd

Contact Person: Jean

Tel: 15715653551
