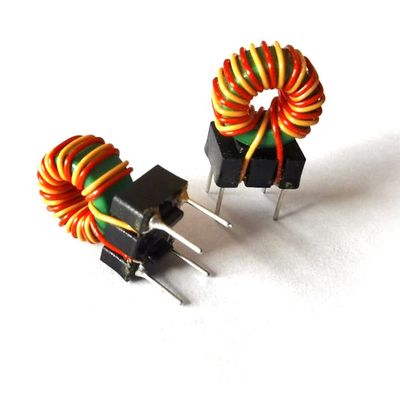

4000V AC Filter Common Mode Inductor Choke 1KHZ Emi Electronic Equipment

Certification
China Hefei Hemei Electronics Technology Co., Ltd certification
I'm Online Chat Now

4000V AC Filter Common Mode Inductor Choke 1KHZ Emi Electronic Equipment

4000V AC Filter Common Mode Inductor Choke 1KHZ Emi Electronic Equipment
4000V AC Filter Common Mode Inductor Choke 1KHZ Emi Electronic Equipment

Large Image :  4000V AC Filter Common Mode Inductor Choke 1KHZ Emi Electronic Equipment

Product Details:
Place of Origin: China
Brand Name: HEMEI
Model Number: HM1277963-13T
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD0.1~0.5/PCS
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH

4000V AC Filter Common Mode Inductor Choke 1KHZ Emi Electronic Equipment

Description
Materail: Mn、Zn、Ni Inductance: 600uh MIN
DC Resistance: 30mΩ MAX Turn Ratio: 13
Voltage: 4000VAC Test Condition: 1KHZ 0.1V
High Light:

4000V AC common mode inductor

,

1KHZ common mode inductor

,

1KHZ common mode choke

Filter Common Mode Inductors For Suppressing Emi Noise Of Electronic Equipment

It adopts ferrite core, double wires are wound in parallel. The low differential mode noise signal suppresses the interference source and is difficult to deform in the high-speed signal. Good noise suppression countermeasures, high common mode noise suppression and low differential mode noise signal suppression.

The common mode filter design is relatively simple, including common mode capacitors, balun or common mode inductors. The common mode capacitor bypasses the common mode current of the two input lines to the ground. The common mode inductance presents a balanced impedance, that is, the impedance in the power line and the ground line are equal, and this impedance presents an impedance characteristic to common mode noise.

Applications

  • Compact fluorescent lamp
  • Television receiver
  • Radio cassette player
  • PC power supply
  • Monitor,audio,VCD,DCD
  • UPS
  • The electronic apparatus
  • The noise rejection
  • Induction cooker,etc.



Feature
  • High current capacity
  • Low core loss at frequency
  • High reliability, efficiency
  • Small packaged size
  • Operating Temperature: -30°C to +80°C
  • Electrical Specifications at 20°C
NO Item Test pin Test value Condition
1 Inductance
4-1/3-2
600uh MIN
1KHZ 0.1V
2 Voltage
4-1/3-2
4000VAC
10S/2mA
3 DC resistance
4-1=3-2
30mΩ MAX
TH2511



Diagram

4000V AC Filter Common Mode Inductor Choke 1KHZ Emi Electronic Equipment 0

4000V AC Filter Common Mode Inductor Choke 1KHZ Emi Electronic Equipment 14000V AC Filter Common Mode Inductor Choke 1KHZ Emi Electronic Equipment 2
