5000 VDC Toroidal Choke Coil Inductor 15mh Ni Zn Mn

Certification
China Hefei Hemei Electronics Technology Co., Ltd certification
I'm Online Chat Now

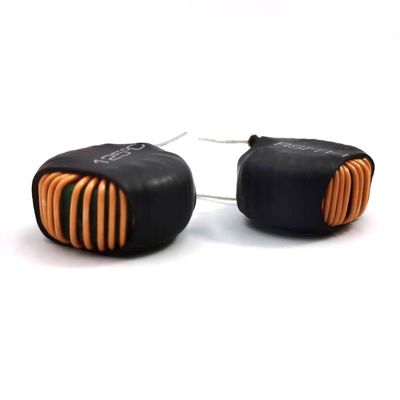

5000 VDC Toroidal Choke Coil Inductor 15mh Ni Zn Mn

5000 VDC Toroidal Choke Coil Inductor 15mh Ni Zn Mn
5000 VDC Toroidal Choke Coil Inductor 15mh Ni Zn Mn

Large Image :  5000 VDC Toroidal Choke Coil Inductor 15mh Ni Zn Mn

Product Details:
Place of Origin: China
Brand Name: HEMEI
Certification: CE
Model Number: HM181007L01
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD0.1~0.5/PCS
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH

5000 VDC Toroidal Choke Coil Inductor 15mh Ni Zn Mn

Description
Materail: Mn、Zn、Ni Inductance: 15mh±30%
DC Resistance: 120mΩ/ MAX Turn Ratio: 40
Voltage: 5000VDC Test Condition: 1KHZ 0.3V 100Ω
High Light:

15mh Choke Coil Inductor

,

5000 VDC Choke Coil Inductor

,

Ni toroidal choke coil

Inductance coil choke inductor

Inductance is a property of a closed loop, that is, when the current passing through the closed loop changes, an electromotive force will appear to resist the change of the current. This kind of inductance is called self-inductance and is the property of the closed loop itself. Assuming that the current in a closed loop changes, an electromotive force is generated in another closed loop due to induction. This inductance is called mutual inductance

Applications

  • Compact fluorescent lamp
  • Television receiver
  • Radio cassette player
  • PC power supply
  • Monitor,audio,VCD,DCD
  • UPS
  • The electronic apparatus
  • The noise rejection
  • Induction cooker,etc.



Feature
  • High current capacity
  • Low core loss at frequency
  • High reliability, efficiency
  • Small packaged size
  • Operating Temperature: -30°C to +80°C
  • Electrical Specifications at 20°C
NO Item Test pin Test value Condition
1 Inductance 1-4
15mh±30%
1KHZ 0.3V 100Ω
2 Voltage
5000VAC
2S/2mA
3



Diagram

5000 VDC Toroidal Choke Coil Inductor 15mh Ni Zn Mn 0

5000 VDC Toroidal Choke Coil Inductor 15mh Ni Zn Mn 1
