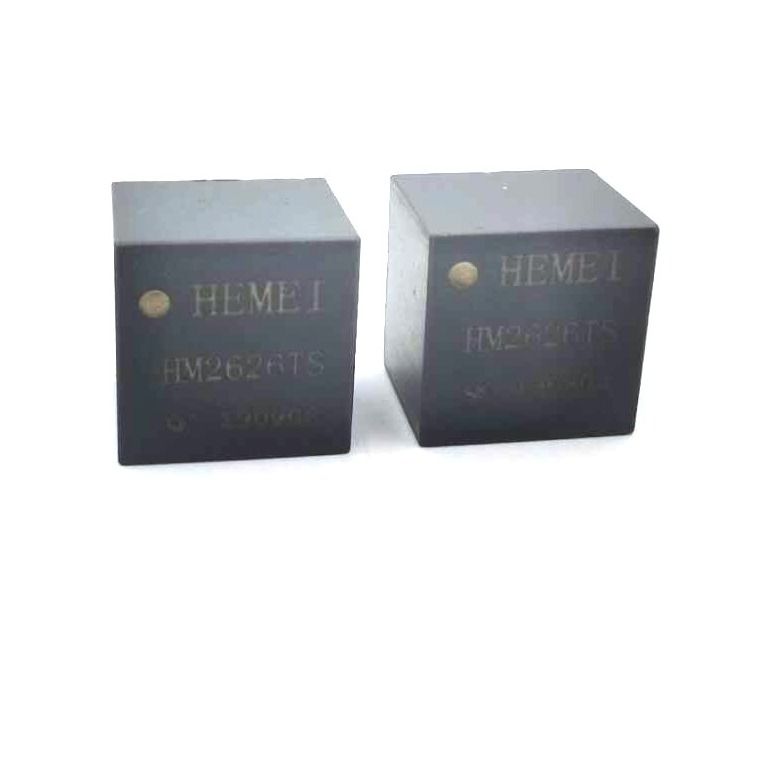

HM2626TS Electronic Apparatus Coupled Inductor Model Audio 1mH

HM2626TS Electronic Apparatus Coupled Inductor Model Audio 1mH
HM2626TS Electronic Apparatus Coupled Inductor Model Audio 1mH

Large Image :  HM2626TS Electronic Apparatus Coupled Inductor Model Audio 1mH

Product Details:
Place of Origin: China
Brand Name: HEMEI
Certification: CE/UL
Model Number: HM2626TS
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD0.1~0.5/PCS
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH

HM2626TS Electronic Apparatus Coupled Inductor Model Audio 1mH

Description
Materail: Mn、Zn Inductance: 1mH ±25%
DC Resistance: 200mΩ MAX Usage: The Noise Rejection
High Light:

Electronic Apparatus coupled inductor model

,

1mH coupled inductor model

,

1mH audio coupling transformer

HM2626TS Coupling Transformer Inductor For PC Power Supply

Inductance (inductance coil) is an electromagnetic induction element wound with insulated wires (such as enameled wire, yarn covered wire, etc.), and it is also one of the commonly used components in electronic circuits. The inductance is a series of coaxial turns made from enameled wire, yarn covered wire or plastic wire on an insulating skeleton or magnetic core or iron core. It is represented by the letter "L" in the circuit, and the main function is to The signal is isolated, filtered or combined with capacitors, resistors, etc. to form a resonant circuit.

According to the mounting method: there are chip inductors and plug-in inductors. At the same time, the inductors with external shielding become shielded inductors, and those with exposed coils are generally called unshielded inductors. Fixed inductors are divided into hollow electronic watch inductors, magnetic core inductors, iron core inductors, etc. According to their structure and shape and pin mode, they can also be divided into vertical co-directional pin inductors and horizontal axial pin inductors. Inductors, large and medium-sized inductors, small and exquisite inductors and chip inductors, etc.

Applications

  • Compact fluorescent lamp
  • Television receiver
  • Radio cassette player
  • PC power supply
  • Monitor,audio,VCD,DCD
  • UPS
  • The electronic apparatus
  • The noise rejection
  • Induction cooker,etc.



Feature
  • High current capacity
  • Low core loss at frequency
  • High reliability, efficiency
  • Small packaged size
  • Operating Temperature: -30°C to +80°C
  • Electrical Specifications at 20°C
NO Item Test pin Test value Condition
1 Inductance 1-4
1mH ±25%
100KHZ 1V CHENHWA1062A
2 DC resistance
1-4/7-10
200mΩ MAX
YY2811
3 Voltage 1-7/4-10
AC4000V
2mA 50HZ CS2670A



Diagram

HM2626TS Electronic Apparatus Coupled Inductor Model Audio 1mH 0

HM2626TS Electronic Apparatus Coupled Inductor Model Audio 1mH 1HM2626TS Electronic Apparatus Coupled Inductor Model Audio 1mH 2
