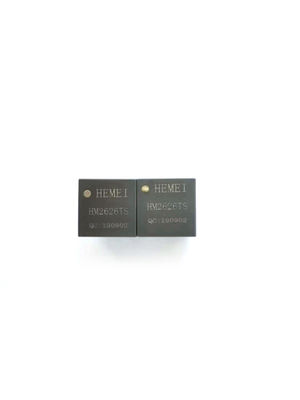

Compensated Isolation Choke Coil Inductor Power DCD Filter

Compensated Isolation Choke Coil Inductor Power DCD Filter
Compensated Isolation Choke Coil Inductor Power DCD Filter

Large Image :  Compensated Isolation Choke Coil Inductor Power DCD Filter

Product Details:
Place of Origin: China
Brand Name: HEMEI
Certification: CE/UL
Model Number: HM2626TS
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD0.1~0.5/PCS
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH

Compensated Isolation Choke Coil Inductor Power DCD Filter

Description
Materail: Mn、Zn Usage: The Noise Rejection
High Light:

DCD Filter Choke Coil Inductor

,

Compensated Isolation Choke Coil Inductor

,

DCD power choke coil

Block inductors, filter inductors, isolation inductors, compensated inductors

Inductors can be divided into oscillation inductors, correction inductors, kinescope deflection inductors,
Block inductors, filter inductors, isolation inductors, compensated inductors, etc. Oscillating inductors are divided into TV line oscillation coils, east-west pincushion correction coils and so on. Kinescope deflection inductors are divided into line deflection coils and field deflection coils. The choke inductors (also called choke coils) are divided into high-frequency choke coils, low-frequency choke coils, choke coils for electronic ballasts, TV line frequency choke coils, and TV airport frequency choke coils. Filter inductors are divided into power supply (power frequency) filter inductors and high-frequency filter inductors, etc.

Applications

  • Compact fluorescent lamp
  • Television receiver
  • Radio cassette player
  • PC power supply
  • Monitor,audio,VCD,DCD
  • UPS
  • The electronic apparatus
  • The noise rejection
  • Induction cooker,etc.



NO Item Test pin Test value Condition
1 Inductance 1-4
1mH ±25%
100KHZ 1V CHENHWA1062A
2 DC resistance
1-4/7-10
200mΩ MAX
YY2811
3 Voltage 1-7/4-10
AC4000V
2mA 50HZ CS2670A



Diagram

Compensated Isolation Choke Coil Inductor Power DCD Filter 0

Compensated Isolation Choke Coil Inductor Power DCD Filter 1Compensated Isolation Choke Coil Inductor Power DCD Filter 2
